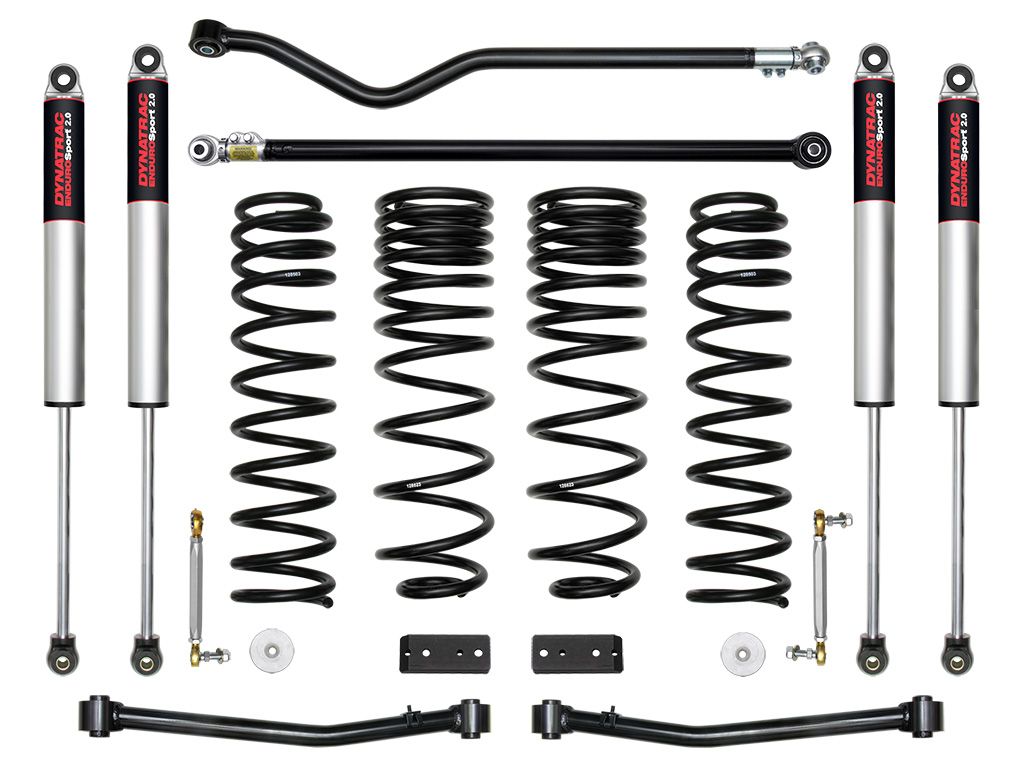

Dynatrac EnduroSport 3 inch Suspension Lift Kit System 4 for the 2020 and Newer Jeep Gladiator - JT30-1X5310-L4

The Dynatrac 3" Suspension Lift System 3 is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. Made for adding lift height, wheel travel, easing articulation, and improving drivability.

• 100% bolt-on system makes for an easy install
• 2.0 EnduroSport shocks with Jeep JT specific valving
• 3" front lift height and 1.5" of rear lift over stock
• 3" front, 2" rear increase in wheel travel
• Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
• Adjustable track bars offer on-Jeep adjustability, improve steering response, and reduce suspension bind under articulation
• Dual rate front coil springs and triple rate rear coils with a lifetime guarantee against sagging/breakage
• Fits 35" tires (37" with optional extended bump stop spacer kit, Part # DT922071)
• Improves on and off-road ride quality over stock
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Tubular steel link arms with dual durometer bushings for noise-free performance, maximum articulation, and minimal bind

Additional Detail

The Dynatrac 3" Suspension Lift System 4 for the 2020-Up Jeep Gladiator JT is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 4 builds off of System 3 with the addition of Dynatrac adjustable front and rear track bars for proper axle position and unimpeded articulation. This system includes 3" lift front dual rate coil springs, 1.5" lift triple rate rear coil springs, 2.0 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware to complete the installation. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise-free operation, maximum articulation, and minimal bind. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3" in front and 2" in the rear, significantly improving the performance of the 2020-Up JT. The 3.0" Lift System allows for fitment of 35" tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (Part # DT922071) is available.

Important Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
• TECH NOTE: Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock-weighted vehicle.
• TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines.
• TECH NOTE: NOT compatible with Jeep Gladiator Mojave
• TECH NOTE: Spanner wrench available to aid in length adjustment. Part # DT9191014.
